Brand: Joerns
Intuitive two-pedal locking system
Uniquely-Joerns AdvanceCare positioning
Description

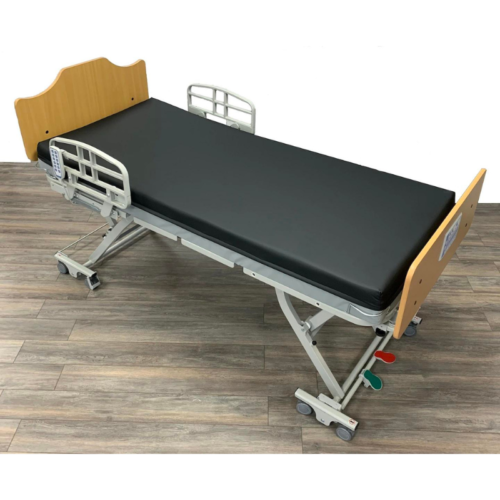

The industry standard for long-term care beds, our top selling EasyCare® bed fame is fully configurable to meet a variety of needs – for both the residents and caregiver – and offers price points for budgets of any size. EasyCare expands value by offering AdvanceCare controls with every bed including comfort positioning and memory adjustments for personalized care. A Joerns exclusive, now offers the ability to unlock smart connected care capability.
Specifications
- Bed Length: 80 in standard, 84 in, 88 in with length extension
- Bed Width: 35 in., 39 in. or 42 in. with Integrated Width or CareWide Accessory
- Safe Working Load: 600 lbs
- Product Weight Roll-in-Low: 220 lbs
- Product Weight Roll-at-any-Height: 279 lbs
- Sleep Surface Travel Range: 7 in to 30 in
- Underbed Clearance: 23 ¾ in
- Max. Back Angle: 65 degrees to horizontal
- Max. Knee Angle: 35 degrees to horizontal
- Safety Standards: UL60601-1, CAN/CSA C22.2 NO. 601.1, IEC 60601-2-38, CAN/CSA C22.2 NO. 601.2.38
Features
- Intuitive two-pedal locking system is centrally positioned at the foot end of the bed and easily visible due to color-coded status indicators
- Integrated Width Extension provides a sleep surface that expands and retracts from 35 in, 39 in and 42 in and quickly adjusts to move through doorways, while compliant to HBSW entrapment guidelines
- Uniquely-Joerns AdvanceCare positioning includes 30*/45* comfort pauses plus programmable AutoTransfer Height for personalized care and staff efficiency better enabling care for complex patients
- Connexio-ready for connected care enables improved efficiency and delivery of care by empowering operators and clinicians with real time visibility of assets, staff and residents
Documents
- EasyCare Spec Sheet
- Bed Panel Spec Sheet
- CareWide Integrated Width
- EasyCare Warranty
- EasyCare Manual for 600 lb Bed
- EasyCare Manual for 500 lb Bed
- EasyCare Parts List 600 lb Dec 2023-Current
- EasyCare Parts List 500 lb 2013 – Dec 2023 600 lb 2016 – Dec 2023
- Videoes: EasyCare Inservice | EasyCare Installation | EasyCare Troubleshooting | Proper Pendant Usage
Additional information
| Length | 80”, 84”, 88” |
|---|---|
| Weight | 220, 279 |
| Weight Capacity | 600 |
