Brand: Drive
The wood grain panels are break and scratch resistant
Satisfies all applicable FDA entrapment guidelines
Specifications
- Warranty: (Original Purchaser) 5 Years on Motor and Hand Control, Limited Lifetime on Welds and Frame, 1 Year on All Other Parts and Components
- Weight Capacity: 450 lbs maximum weight limit includes weight of occupant
- Carton Shipping Weight: 179 lb
- Weight: 163 lb
Features & Benefits

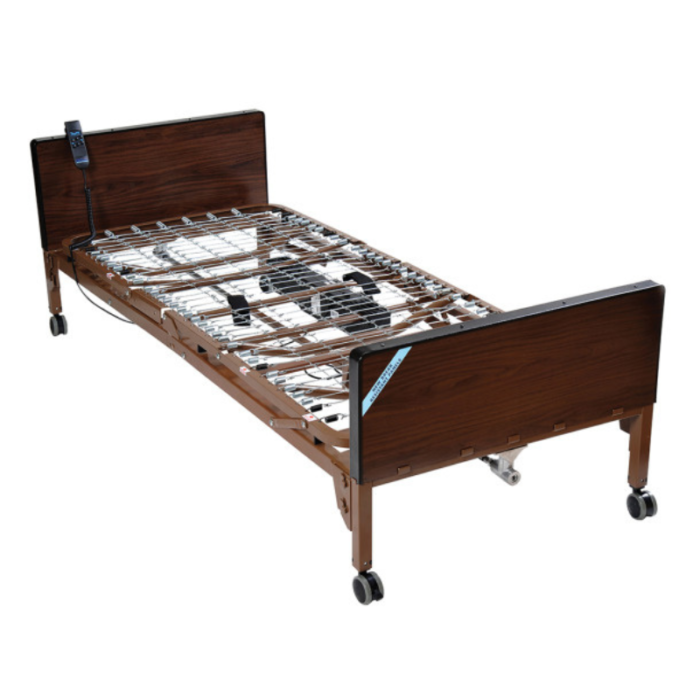

- The Delta 1000 is truly universal because the bed frame can be used with Drive’s and most other manufacturers’ bed ends, old and new
- The transition box mounted on the foot section is key to interchangeability (Figure A)
- The transition box allows you to change the rotation of the high/low shaft
- Headboard is taller than footboard to better fit home decor (Figure B)
- The wood grain panels are break and scratch resistant
- Foot section weighs 50% less than conventional foot sections to make deliveries safe and easy
- Once installed, the high/low shaft will stay with the bed to eliminate loss or forgetting on future installations (Figure C)
- Labels and color-coded springs assure accurate installation of side rails for patient safety (Figure D)
- Unique motor is completely self-contained to reduce weight and noise
- The motor assembly can be installed and removed with patient in bed
- Bed, side rails and mattress safety-tested by SGS, a nationally recognized testing facility
- Satisfies all applicable FDA entrapment guidelines
- The motor is UL approved
- In the event of a power failure, a 9 volt battery, located in the motor, can lower the head and foot sections nine times
- No crank needed
- New and improved hand pendant has large, easy-to-use controls (Figure E)
- Bed ships in two cartons
- Channel frame construction provides superior strength and reduced weight
- Zinc-coated spring deck
- Extension kit available (model #15030EXTKIT) extends length from 80″ to 84″
- Patent Pending
- Weight Capacity 450 lbs
Accessories
- Bedding in a Box – contains 1 pillow case, 1 fitted sheet, 1 cover sheet, and 1 blanket.
- Fitted Sheet – Contains 2 Fitted Sheets
Documents
Parts Diagram/Technical Resources & Downloads
Hcpcs Reimbursement Code
No Results Found
Additional information
| Warranty | 1 Year on All Other Parts and Components, 5 Years on Motor and Hand Control(Original Purchaser), Limited Lifetime on Welds and Frame |
|---|---|
| Weight | 163 |
| Weight Capacity | 450 |
